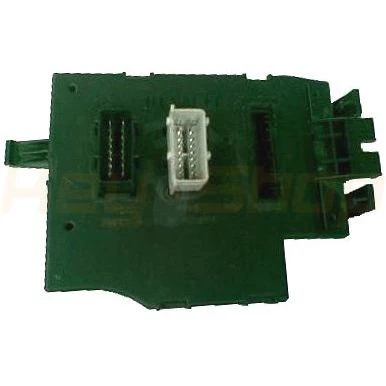

Software 57 / Renault / UCH Johnson Controls type 1
This module can be used in 2 ways:
1. If you don`t know the 12-digit PIN code: The memory device is serial EEPROM 95c080 SMD8 package.
The expected file size is 1024 bytes. The module calculates the PIN code.
Use PCF7936 or Silca T14 – JMA TP12 transponder.
If you use PCF7936 written transponder has to be matched with the car using a diagnostic device, if you use CN3 – no need.
2. If you know the 12-digit PIN code: Start the software and select the module.
Insert PCF7936 or Silca T14 – JMA TP12 transponder. Press the PROG button.
The software opens the box, where you must enter a 12-digit PIN code. Verify it and press OK.
Match prepared transponder with car using diagnostic device and PIN code.
Vehicles equipped with this unit:
Renault: Kangoo(2007-), Trafic(2007-), Master(2007-)
Opel: Vivaro(2007-), Movano(2007-)
